Looping

Content is machine translated from English by Phrase Language AI.

Loops can be implemented within a workflow to repeat a set of tasks based on defined conditions.

Loops execute in sequence. A maximum of 4 steps can run in parallel.

Loop configuration is accessed in either the Advanced tab of a block configuration, or by right-clicking a block and selecting Edit loop.

Loop settings require a list of things to operate on:

Plain, single values, which are then usable in task parameters such as {{ @item }}.
A .JSON object where each element in the object can be addressed by its key such as {{ @item.key }}.

Accessing the aggregate results of a loop

The output of all iterations can be accessed as a .JSON array once a loop is completed. The output of each iteration must be a valid .JSON file.

There are four loop types that can be defined and are selected in the loop_with field:

withSequence
withItems
withComplexItems
withParam

withSequence

The withSequence loop enables an iteration over a sequence of numbers or the generation of a range of values within a workflow.

It can be used for repeating a set of steps a specific number of times or performing operations based on a range of values.

To create a sample withSequence loop, follow these steps:

Select an empty block and open the Loop configuration.
Click Edit loop.

loop_with configuration options are presented.
From the loop_with field, select withSequence.
Enter the number of loop iterations to the Count field.
Optionally, enter a value the loop should start from and/or end with.
Click Save loop.
From the Parameters configuration, click Edit parameters.

Configuration options are presented.
In the Message field, enter {{ @item }} and click Save parameters.

This value will be converted at runtime.

For example, if count is set to 3 and the start value is 2, the results of this loop will be:

loop list => ["2", "3", "4"]
{{ @item }} => 2 or 3 or 4, based on the iteration

withItems

The withItems loop enables iteration over a list of items.

It can be used when needing to perform operations based on a list of items.

To create a sample withItems loop, follow these steps:

Select an empty block and open the Loop configuration.
Click Edit loop.

loop_with configuration options are presented.
From the loop_with field, select withItems
Enter en in the variable field and click +Item (another variable field is created).
Enter de in the second variable field and create a third field.
Enter fr in the third variable field and create a fourth field.
Enter us in the fourth variable field.
Click Save loop.
From the Parameters configuration, click Edit parameters.

Configuration options are presented.
In the Message field, enter {{ @item }} and click Save parameters.

This value will be converted at runtime.

The results of this loop will be an iteration over a list of language codes:

loop list => ["en", "de", "fr", "ua"]
{{ @item }} => en or de .. ua

withComplexItems

The withComplexItems loop enables iterating over a list of objects.

It can be used when needing to perform operations based on a list of complex items.

To create a sample withComplexItems loop, follow these steps:

Select an empty block and open the Loop configuration.
Click Edit loop.

loop_with configuration options are presented.
From the loop_with field, select withComplexItems
Click +Key:value to add a second key.
For Object 1, enter the following:
- Key: Value1
  - key (optional): name
  - (optional): Project 1
- Key: Value2
  - key (optional): id
  - (optional): 11
Click +Object to add a second object and +Key:value for a second key.
For Object 2, enter the following:
- Key: Value1
  - key (optional): name
  - (optional): Project 2
- Key: Value2
  - key (optional): id
  - (optional): 22

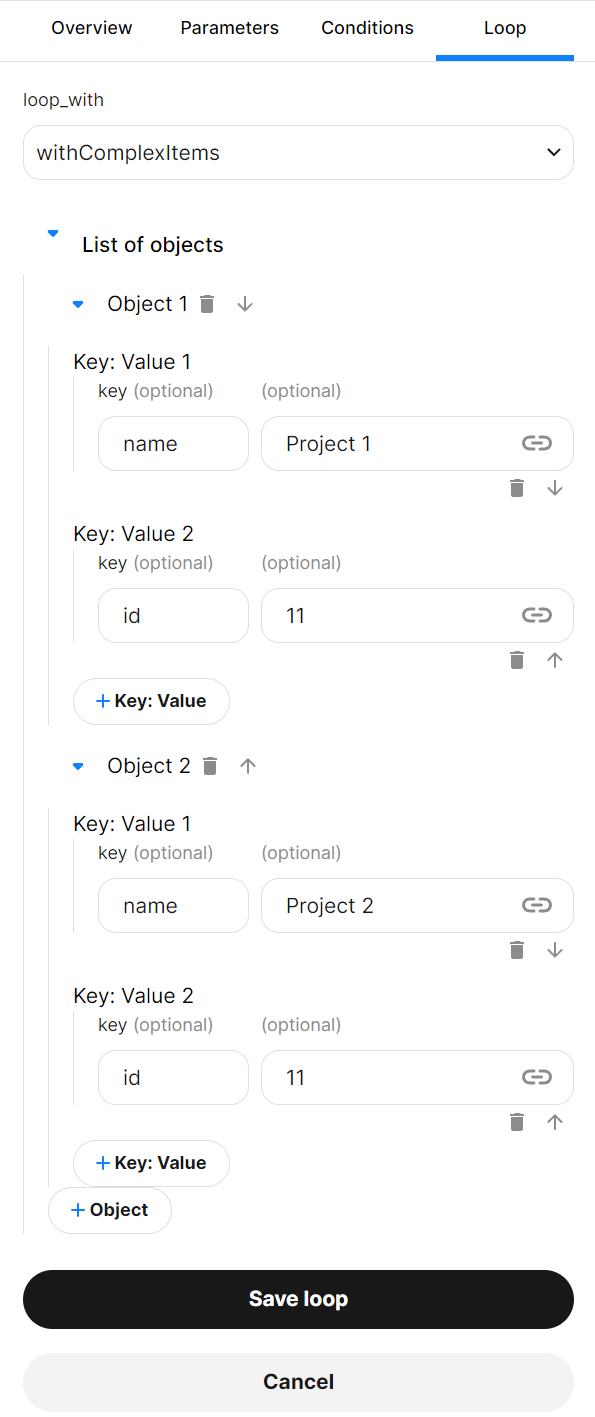

Settings sample:
From the Parameters configuration, click Edit parameters.

Configuration options are presented.
In the Message field, enter {{ @item.name }} and click Save parameters. This value will be converted at runtime.

The results of this loop will be an iteration over a list of projects:

loop list =>

[
  {
    "name": "Project 1",
    "id": 11
  },
  {
    "name": "Project 2",
    "id": 22
  }
]

{{ @item }} =>
```
{
  "name": "Project 1",
  "id": 11
}
```
{{ @item.name }} => Project 1
{{ @item.id }} => 11

withParam

The withParam loop enables iteration over a dynamic list which is output from any previous task or trigger.

This loop is just used as a reference in the parameter field.

Example:

Outputs of task (Strings: Publish a release):

{
  "created_at": "2015-01-28T09:52:53Z",
  "environments": ["development", "production"],
  "id": "abcd1234cdef1234abcd1234cdef1234",
  "locales": [
    {
      "code": "en-GB",
      "id": "abcd1234cdef1234abcd1234cdef1234",
      "name": "English"
    },
    {
      "id": "abcd5678cdef5678abcd5678cdef5678",
      "name": "German",
      "code": "de_DE"
    }
  ],
  "platforms": ["android"],
  "project": {
    "created_at": "2015-01-28T09:52:53Z",
    "id": "abcd1234cdef1234abcd1234cdef1234",
    "main_format": "xml",
    "name": "My Android Project",
    "updated_at": "2015-01-28T09:52:53Z"
  },
  "updated_at": "2015-01-28T09:52:53Z",
  "version": 1
}

If loop settings withParam is set with {{ $.locales }}, then:

loop list =>

[
  {
    "code": "en-GB",
    "id": "abcd1234cdef1234abcd1234cdef1234",
    "name": "English"
  },
  {
    "id": "abcd5678cdef5678abcd5678cdef5678",
    "name": "German",
    "code": "de_DE"
  }
]

First {{ @item }} =>

{
  "code": "en-GB",
  "id": "abcd1234cdef1234abcd1234cdef1234",
  "name": "English"
}

{{ @item.code }} => en-GB
{{ @item.name }} => English

Or if {{ $.environments }} is referenced, then:

loop list => ["development", "production"]
{{ @item }} => development or production
